Protecting instruments used in deep-sea operations is vital not only for the success of any investigation, but also to avoid environmental contamination and potential financial losses. Today, with many years of experience working with titanium, K.U.M. is internationally renowned for producing high quality deep-sea pressure-proof tubes.

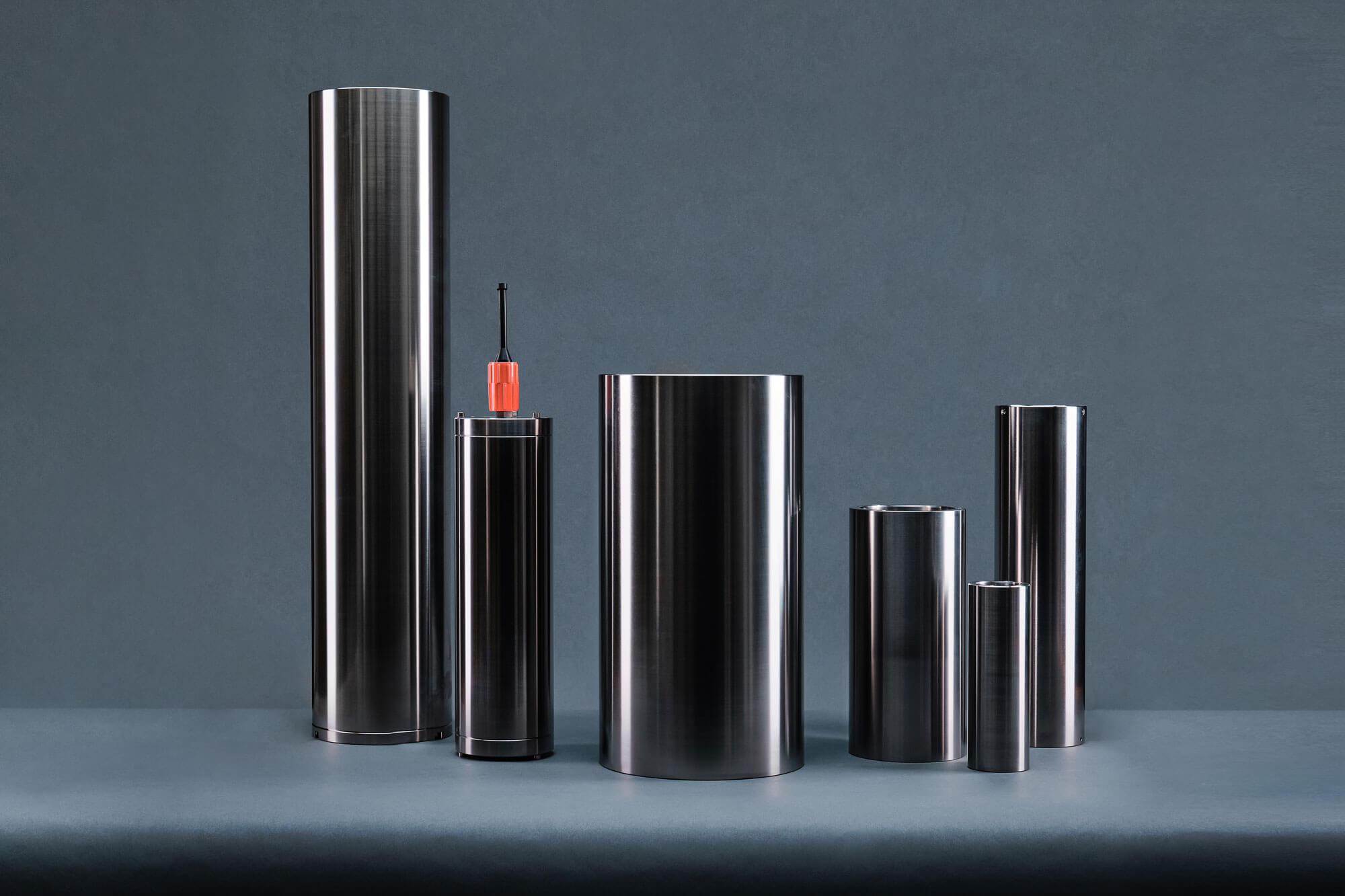

K.U.M.’s Pressure Tubes are manufactured using grade 5 titanium to provide ideal protection from corrosion and in high-pressure environments. Ideal for use on any deep-sea investigation, K.U.M.’s instrument housing Pressure Tubes can be customised to any diameter and are tested within K.U.M.’s pressure tank prior to delivery.

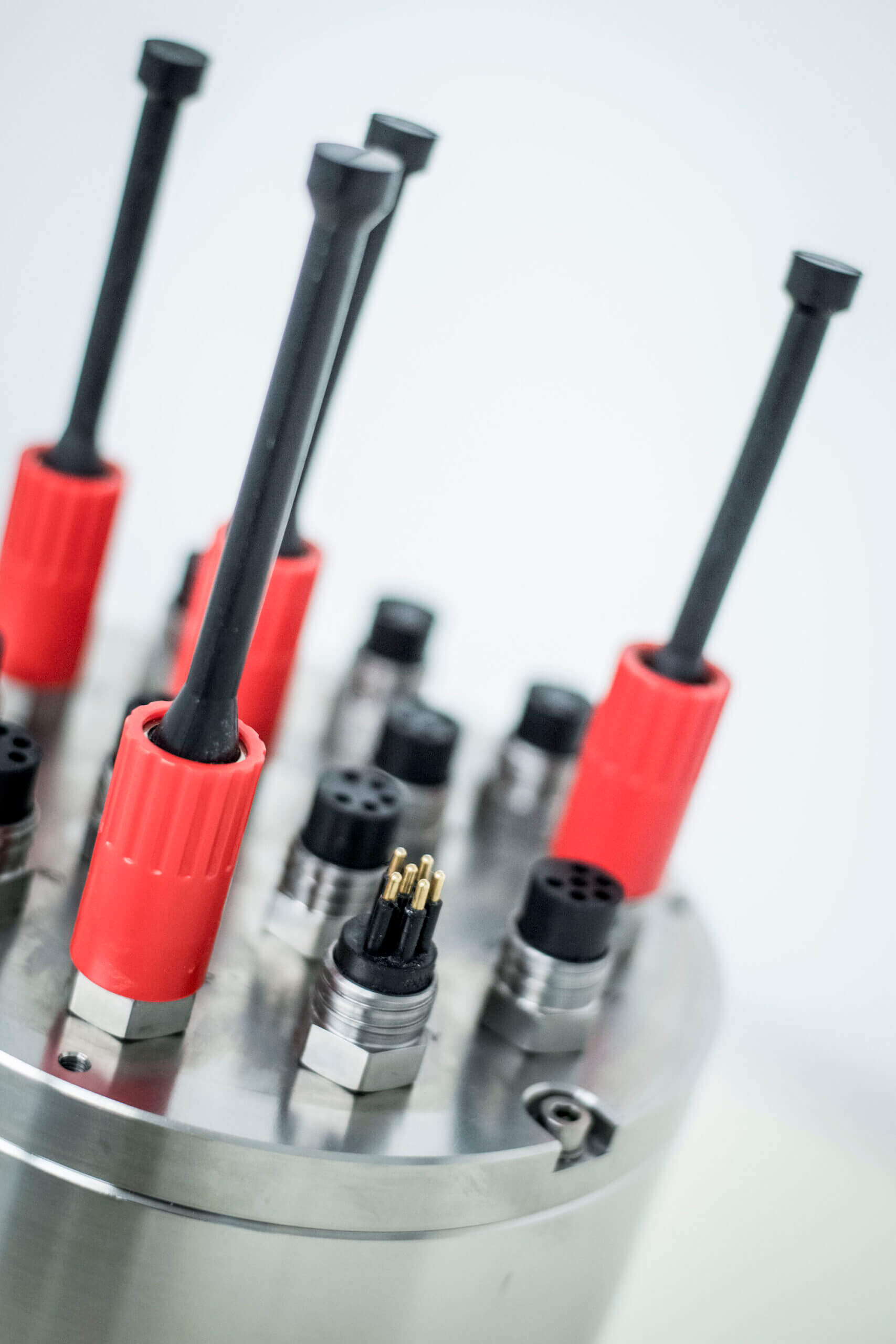

Depending on specific customer requirements, K.U.M. Pressure Tubes can also feature a range of different accessories including caps, connectors or plugs, threads, camera windows, grips, rotating axis and different sensors.

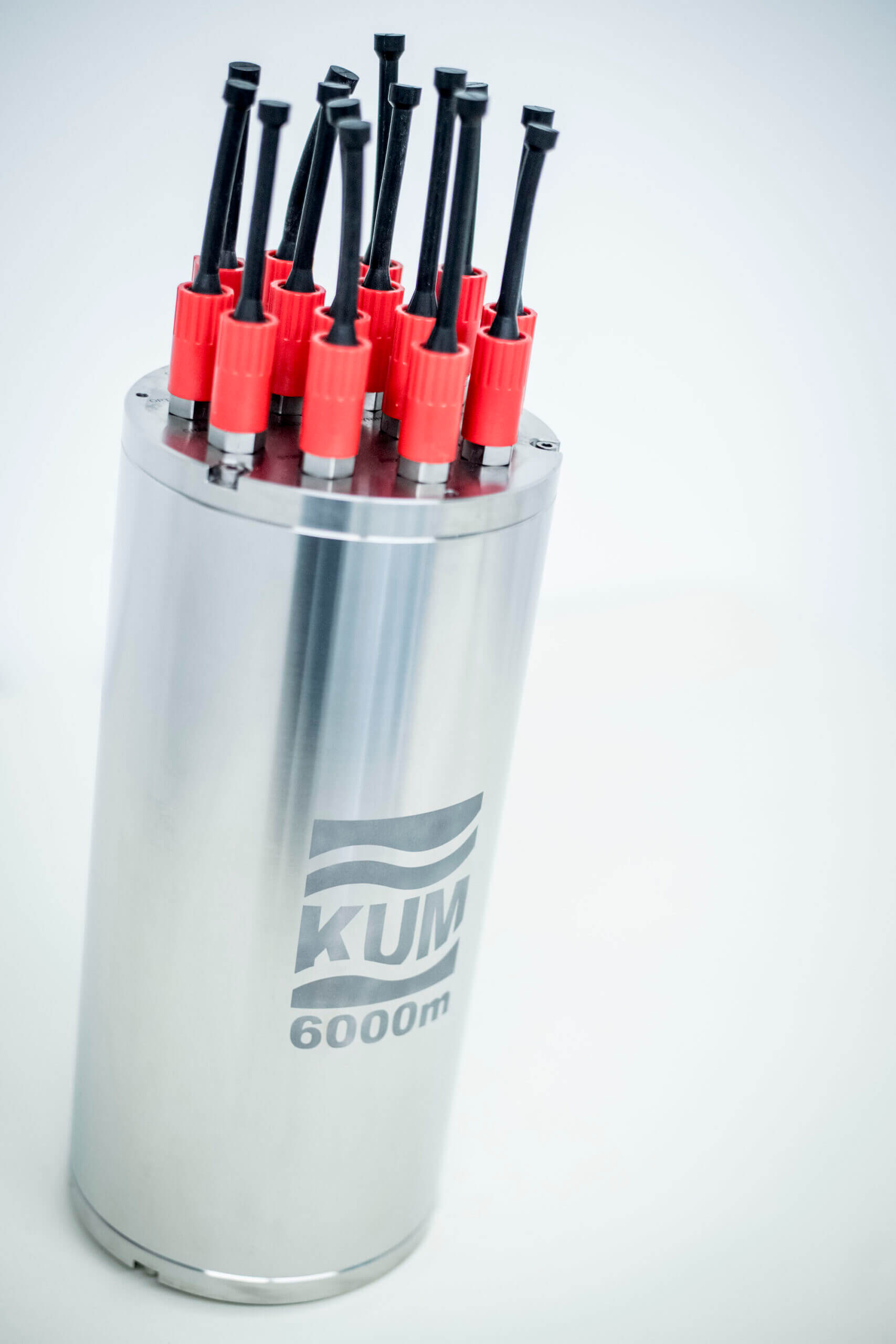

Titanium Tube

Features & Benefits

Applications

  • Deep-sea instrument protection

Advantages

  • Corrosion resistance
  • Titanium 44% lighter than steel
  • Fully customisable
  • External memory available
  • Wide aperture camera windows
  • Glass dome for lighting

Specifications

Technical Data

ConnectorsSubconn, Seacon, Impulse, ODI and others
OpeningsDouble O-ring sealing (Pressure valve on request)
Maximum pressureup to 1200 bar
Life expectancy20 years
Operational depthUp to 12,000m
MaterialTitanium 3.7165 (Grade 5 / TiAl6V4)
DimensionsCustomisable upon customer request
