K.U.M. had great success from the start with NAMMU. However, the team was soon faced with an interesting challenge: how to develop a new, more compact, short-term OBS system that would carry only the OBS essentials in an even smaller, more cost-effective package.

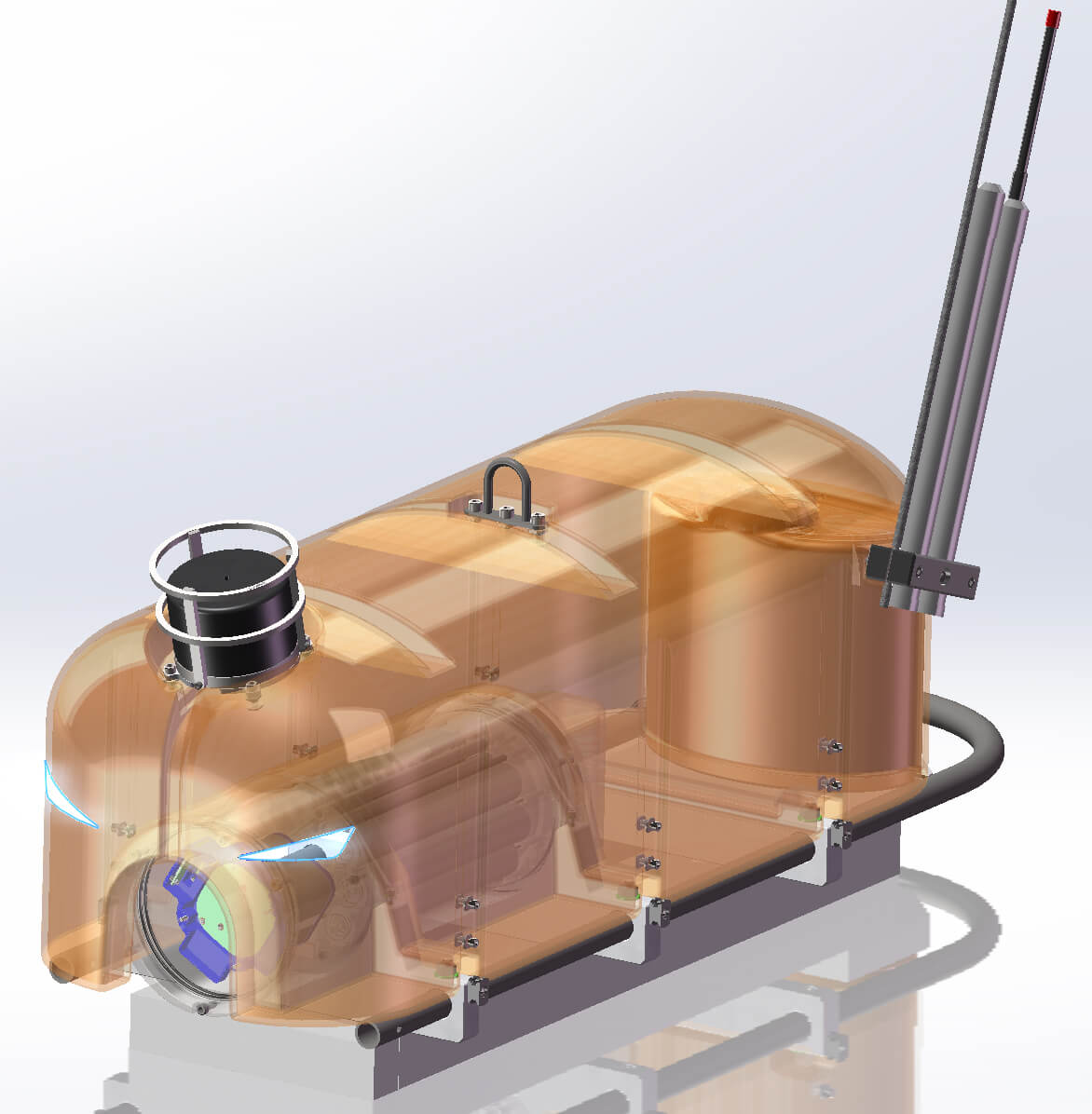

Their answer to this challenge was a new OBS that they called ISOPOD. ISOPOD is designed to deliver the best results by autonomously recording seismic data for over three months in water depths of up to 6,000m. It is equipped with three 4.5Hz geophones, hydrophone, the ultra-low-power four-channel datalogger 6D6 and an acoustic releaser, which is integrated into the main pressure tube to save weight, cost and set-up time.

ISOPOD is also equipped with the external memory StiK which can be exchanged in seconds and redeployed without opening the pressure case. And, with a total weight of only 95kg, ISOPODs can easily be stacked for transportation with up to ten units fitting on a standard pallet. Without any compromise on quality or reliability, ISOPOD is as small and lightweight as a short-term OBS possibly can be.

Isopod

Features & Benefits

Small size

Isopod is the smallest OBS on the market. Get bigger deployments than ever before.

Fast deployments

The system is ready for deployment in minutes saving vital ship time.

Specifications

Mechanical Data

Size1200×400×365mm
Weight95kg fully equipped
FrameTitanium
Pressure tubeTitanium
BuoyancySyntactic foam

Components

Data logerUltra-Low-Power “6D6”, 125mW @ 4 channels @ 32 bits, up to 4000 sps
Geophones4.5Hz resonance frequency, XYZ-orientation
HydrophoneHTI-04, optional DPG, optional APG
ReleaseMechanical-acoustic, optional additional time release
Location2m high visibility flag, flash unit, radio beacon, Iridium Satellite Positioning package (optional), AIS Marine Traffic package (optional)
